Eurofab Engineering Structures design, manufacture and install silos for the construction, biomass and agricultural sectors.

About Our Silos

We design, manufacture and install silos for the construction, biomass and agricultural sectors.

Our mild steel construction silo ranges offer storage from 20m3 to 300m3 for

  • Wood pellets
  • Cement
  • Lime
  • OPC (Ordinary Portland Cement)
  • PFA (Pulverised Fly Ash)
  • GGBS (Ground Granulated Blastfurnace Slag)
or any other product requiring a sturdy and cost effective storage solution.

Our vertical silos have a cone angle of 60o as standard.

Silos with a capacity of less than 100 m3 are of fully welded construction.

Silos with a capacity greater than 100 m3 up to 300 m3 are of bolted construction

Silos can be supplied complete with filters, aeration equipment, level indicators, and lorry dischargers to suit your requirements

We offer a complete range of vertical and horizontal silo storage solutions, custom designed and built in our fabrication workshop.

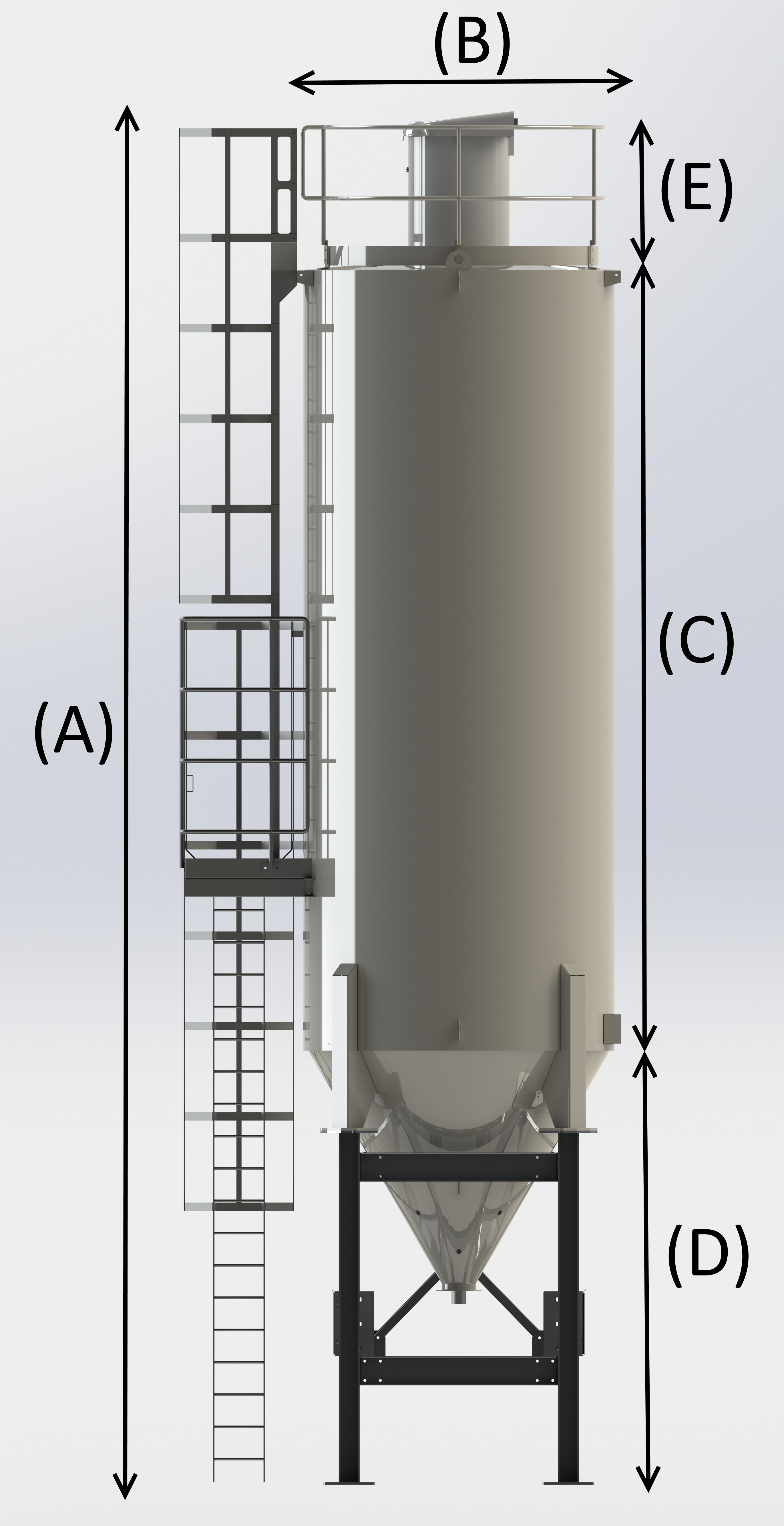

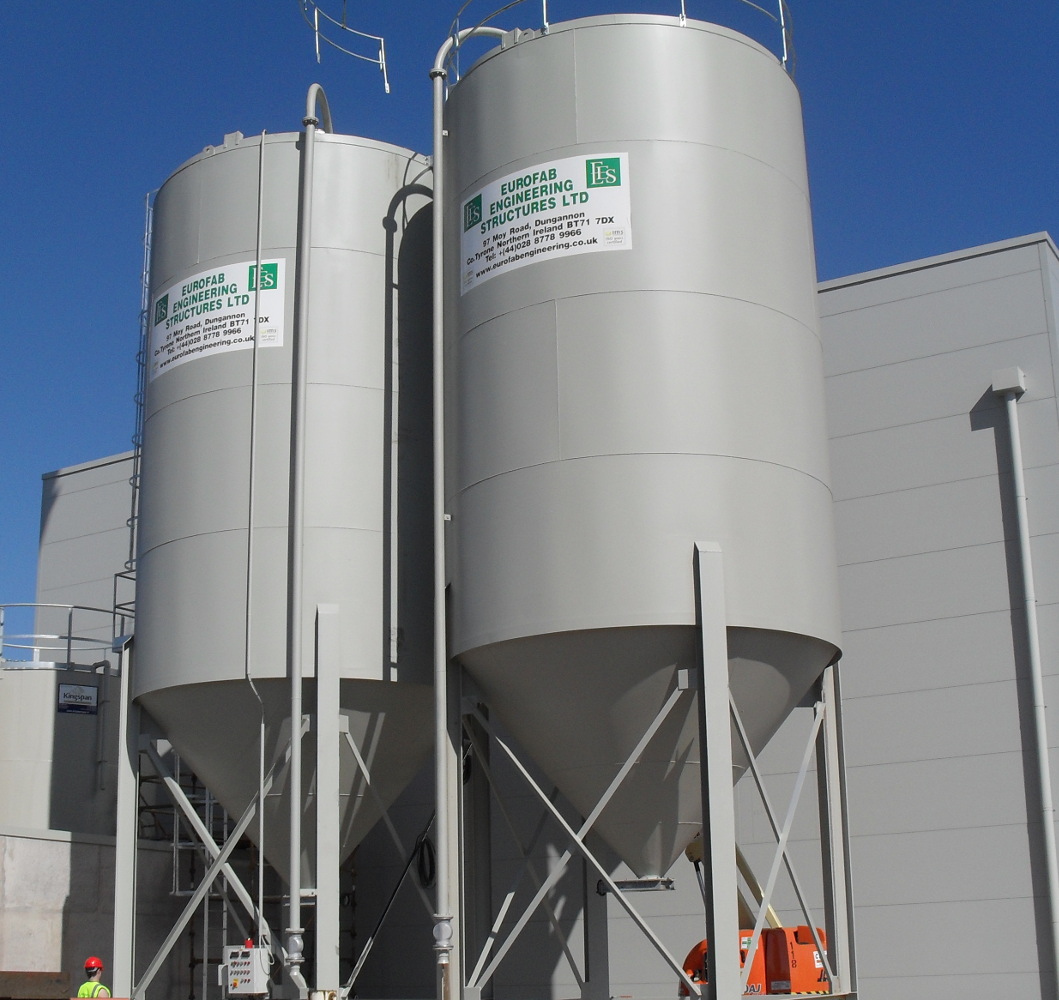

Vertical Silos

Vertical Silos

We design, manufacture and install silos for the construction, biomass and agricultural sectors. Our silos are generally fabricated from S273 fully certified mild steel plate with a fully welded construction.

Nett Capacity A B (Dia) C D E F Nett Weight
20 m3 3660 2500 7110 3450 1500 1200 5.0 T
25 m3 3800 2500 7250 3450 1500 1200 5.6 T
30 m3 3800 3000 7700 3900 1500 1200 6.0 T
35 m3 4550 3000 8450 3900 1500 1200 6.3 T
40 m3 5150 3000 9050 3900 1500 1200 6.6 T
45 m3 5450 3000 9500 4050 1500 1200 7.0 T
50 m3 5750 3200 9800 4050 1500 1200 7.3 T
55 m3 5000 3500 9050 4050 1500 1200 7.8 T
60 m3 5300 3600 9700 4400 1500 1200 8.0 T
65 m3 5700 3600 10100 4400 1500 1200 8.3 T
70 m3 6300 3600 10700 4400 1500 1200 8.6 T
75 m3 6400 3700 10900 4500 1500 1200 8.8 T
80 m3 6850 3700 11350 4500 1500 1200 9.0 T
90 m3 7300 3800 11900 4600 1500 1200 9.6 T
95 m3 7640 3800 12240 4600 1500 1200 9.9 T
100 m3 8200 3800 12800 4600 1500 1200 10.2 T

For further information please contact us Get in Touch

Vertical Silo

Vertical Euroliner Silos

Our Euroliner range of silos are designed, with the export market in mind, to fit on a standard Euroliner trailer.

About Silos

We design, manufacture and install silos for the construction, biomass and agricultural sectors. Our silos are generally fabricated from S273 fully certified mild steel plate with a fully welded construction.

Nett Capacity A B (Dia) C D E F Nett Weight
20 m3 8430 2400 4010 33200 1100 1500 5.0 T
25 m3 9500 2400 5080 3320 1100 1500 5.6 T
30 m3 10600 2400 6080 3320 1100 1500 6.0 T
35 m3 11730 2400 7310 3320 1100 1500 6.3 T
40 m3 12520 2400 8100 3320 1100 1500 6.6 T

For further information please contact us Get in Touch

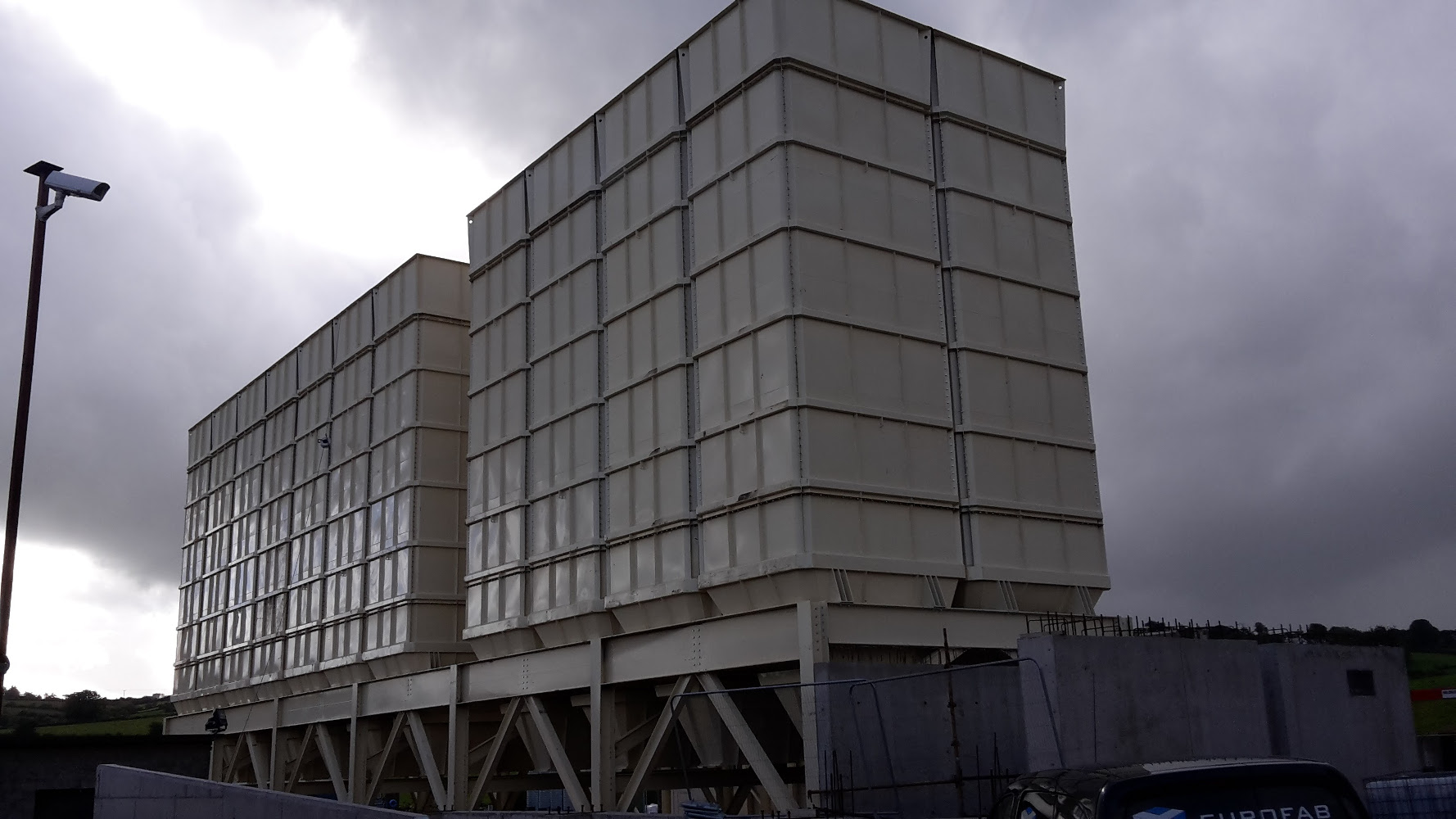

Vertical Bolted Construction Silos

Silos with a capacity greater than 100 m3 up to 300 m3 are of bolted construction

Silos can be supplied complete with filters, aeration equipment, level indicators, and lorry dischargers to suit your requirements

For further information please contact us Get in Touch

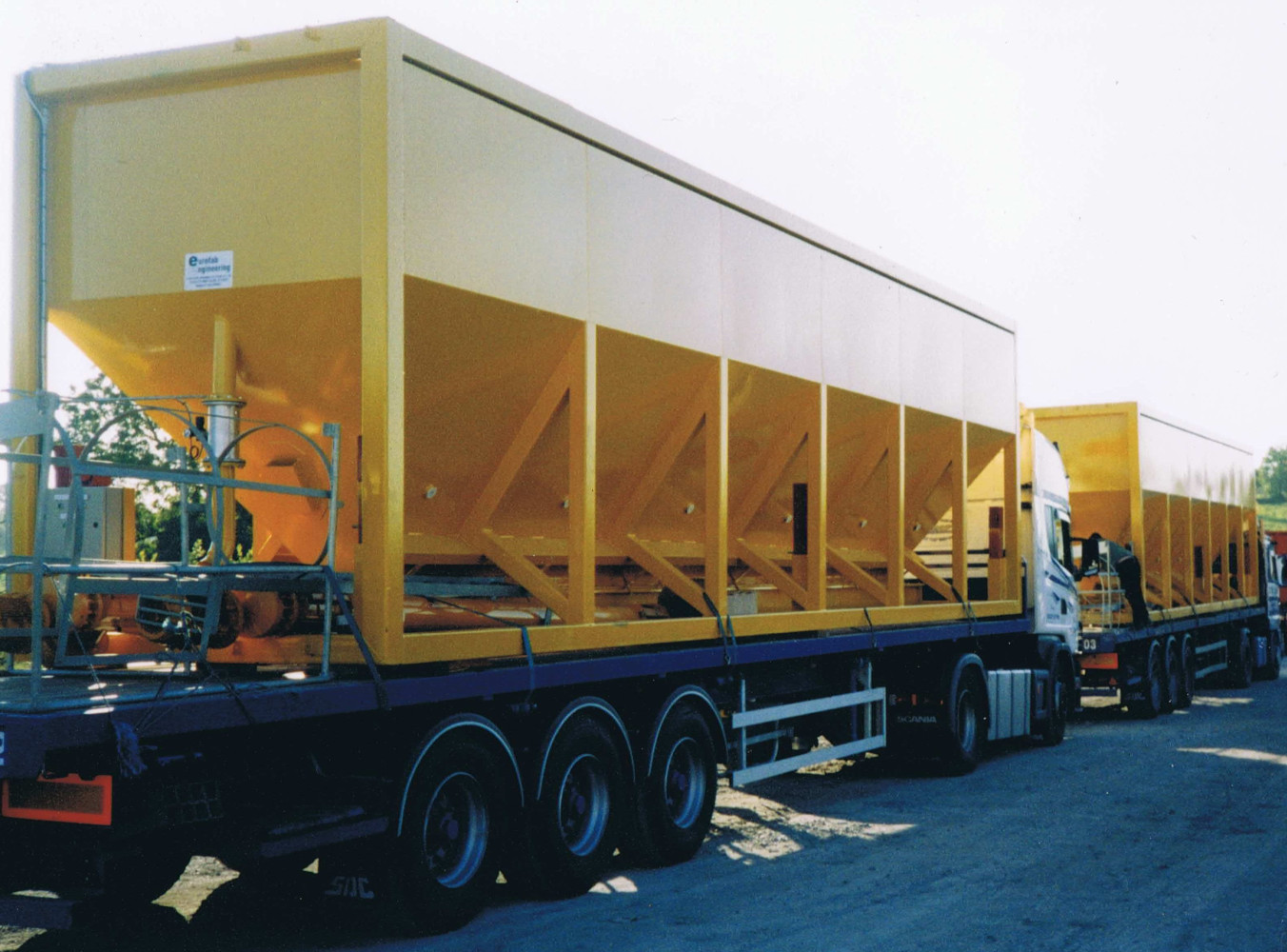

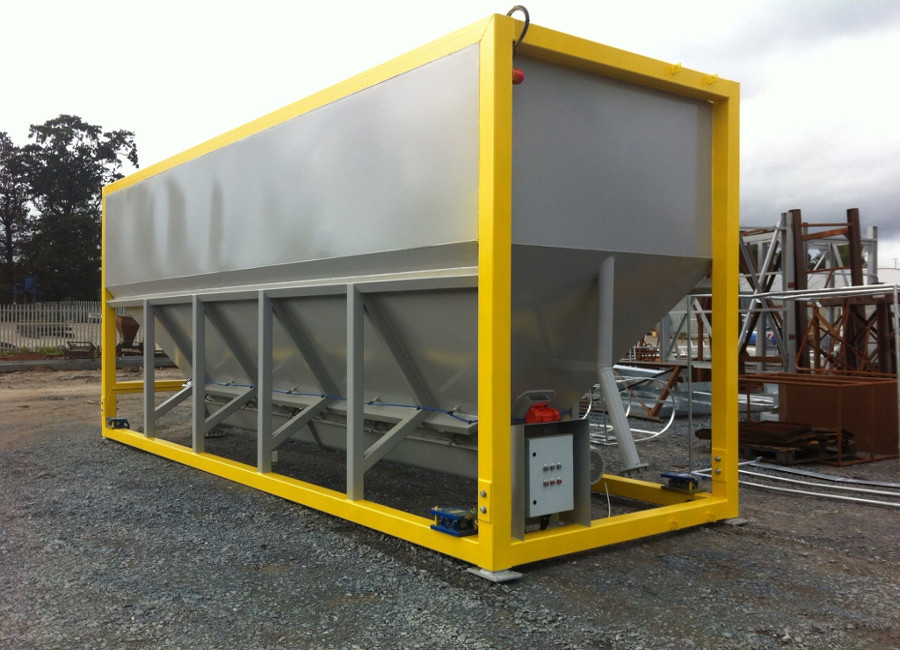

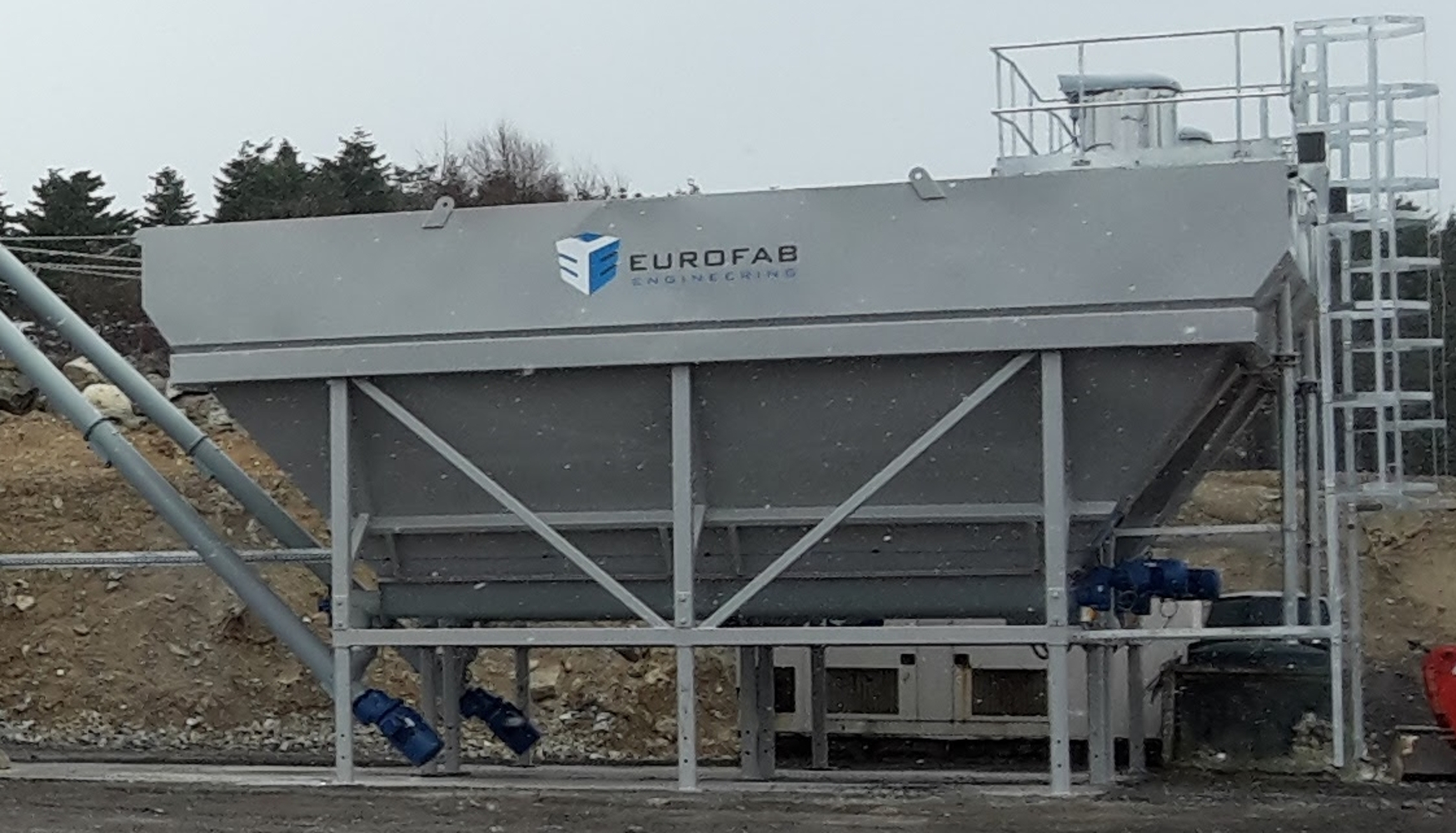

Horizontal Silos

Standard Dimensions

Dimensions per silo
Nominal Capacity (T) Each Silo Nett Capacity A B (Dia) C Outlet Height Self Weight Each Silo
25 18 m3 3200 2400 4500 1100 5.5 T
30 23 m3 3200 2400 5250 1100 6.5 T
35 27 m3 3200 2400 6250 1100 7.5 T
40 30 m3 3200 2400 7000 1100 8.5 T
45 30 m3 3200 2400 7750 1100 9.5 T
50 38 m3 3200 2400 9000 1100 10.5 T

For further information please contact us Get in Touch

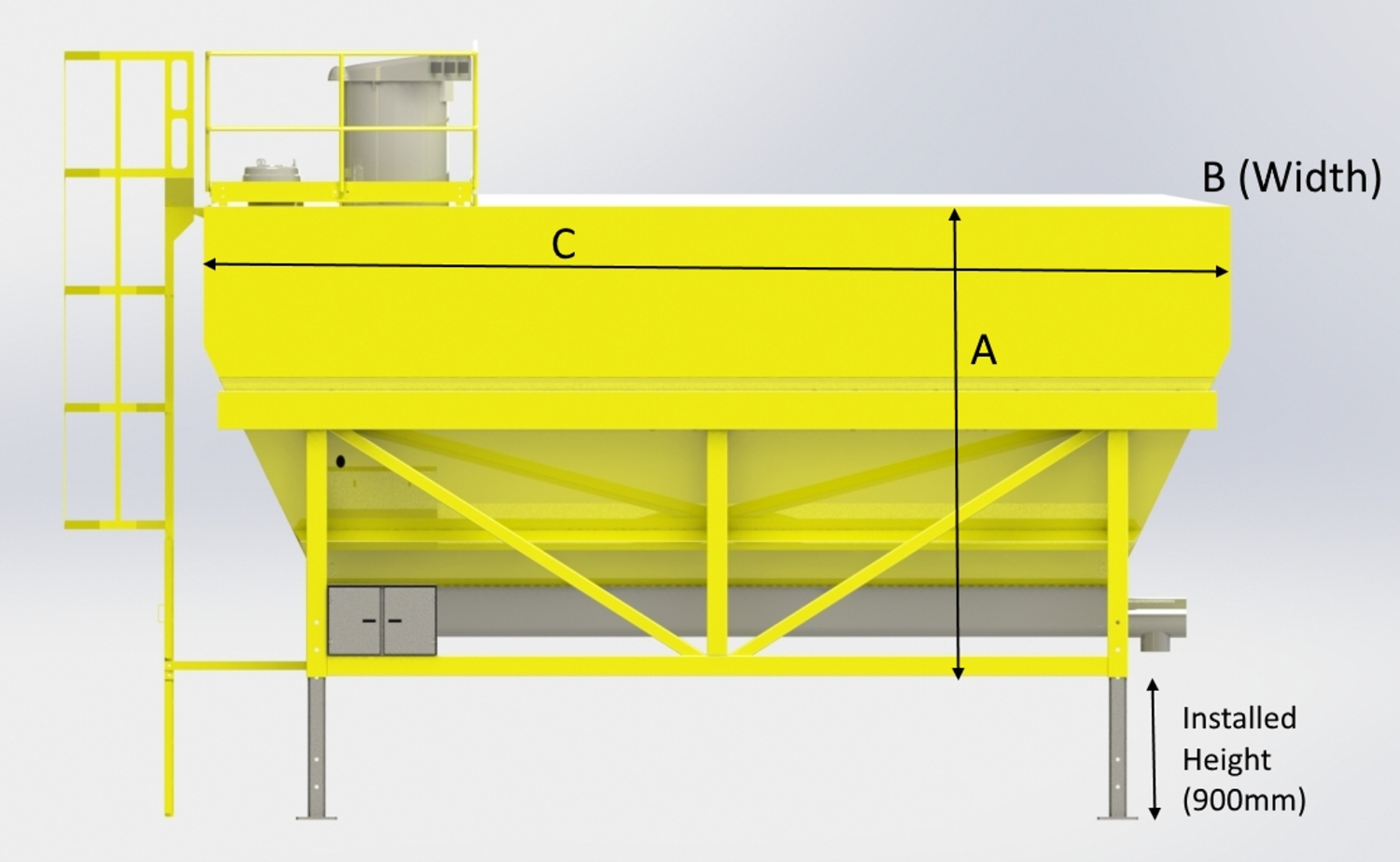

Euroliner Horzizontal Silo

We hold certification in ISO 9001 Quality Management Systems, ISO 14001 Environmental Management Systems and OHSAS 18001 Occupational Health and Safety Management Systems. We are also fully certified to BS EN 1090 ExeC2"
